CAPACITANCE TEST BOX

EBA (Electronic Battery Analyzer) Capacitance Test Box

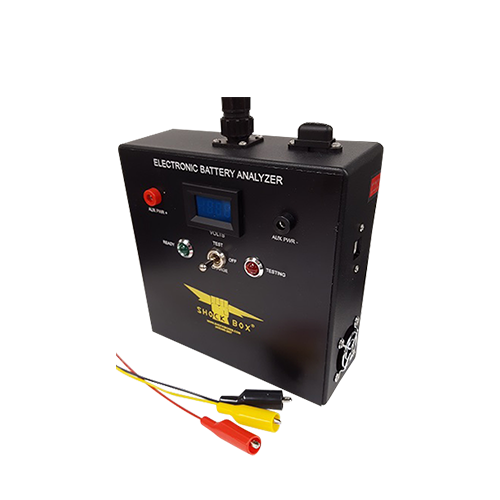

The EBA (Electronic Battery Analyzer) is the big brother to BFG test box.  Where the BFG was designed specifically to perform capacitance tests on the PS-835, PS-850 and PS-855 power supplies and has to be monitored by a technician for the duration of a capacitance test, the EBA can do that and a whole lot more.   The EBA even does the monitoring for you, freeing you up to do other tasks.  It is a computer based capacitance test box that connects to any Windows XP or higher computer via an available USB port.  The EBA comes with two harnesses, the first being the adapter plug for the PS Series and the second being a universal harness (shown) that greatly expands its capabilities.

EBA (Electronic Battery Analyzer) Capacitance Test Box
Check Availability
$2,995.00
Regular price  $3,000.00 Sale price  $2,995.00

Computer based cap checks

About the Capacitance Test Software

EBA (Electronic Battery Analyzer) Capacitance Test Box

EBA (Electronic Battery Analyzer) Capacitance Test Box

$2,995.00
Sale price  $2,995.00 Regular price  $3,000.00
Skip to product information
EBA (Electronic Battery Analyzer) Capacitance Test Box

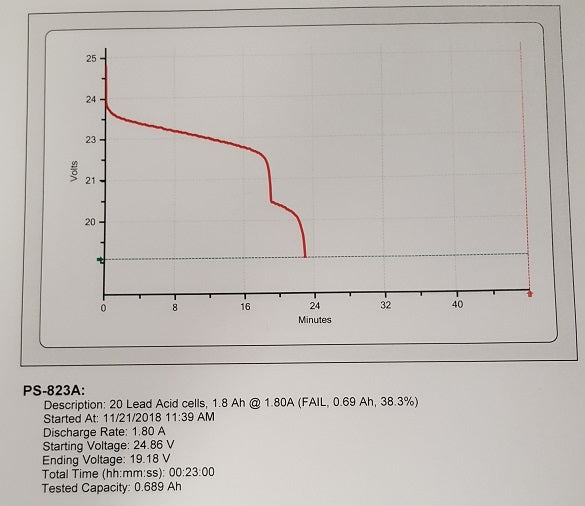

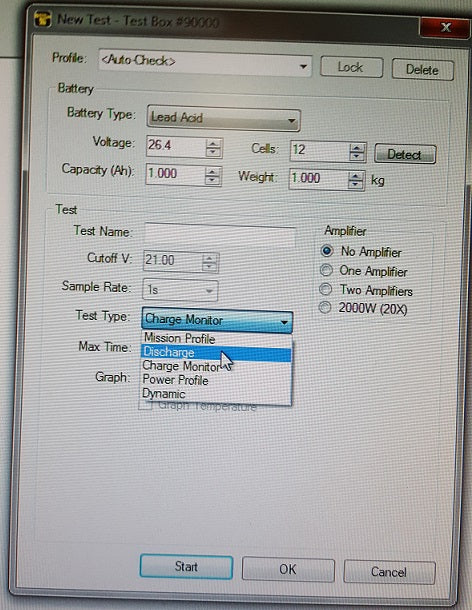

Installing the included custom software will place a ShockBox icon on your desktop for quick access to your testing software. Once you open the software, you simply enter the parameters of the battery being tested and click “START”. The EBA will apply the specified load for the specified time. It displays a graph while performing the test and will provide a PASS or FAIL result and capacitance percentage at the conclusion of the test. It even sounds a tone when completed. (Computer must have a sound card and speakers) You can then print out a results sheet to any printer connected to the computer.

The EBA was specifically designed to perform capacitance test on smaller standby power supplies and battery packs. It is capable of supplying a 100-watt load for discharge tests, it can perform a capacitance test on up to 4.1Ah/24-volt units and up to 8.2 Ah/12-volt units in an hour. Slightly larger units can be tested as well, but will take longer. The EBA comes with our own custom software, a 3 clip universal harness and also a harness with the correct mating plug for PS-835, PS-850, PS-855 and True Blue TS-835 power supplies. If you have the specifications on a small battery or power supply and the connection diagram, you can probably test it with this unit. The front panel jacks provide a simple method for charging with a connection to a benchtop DC power supply (not included). The EBA is our most versatile capacitance test box.
